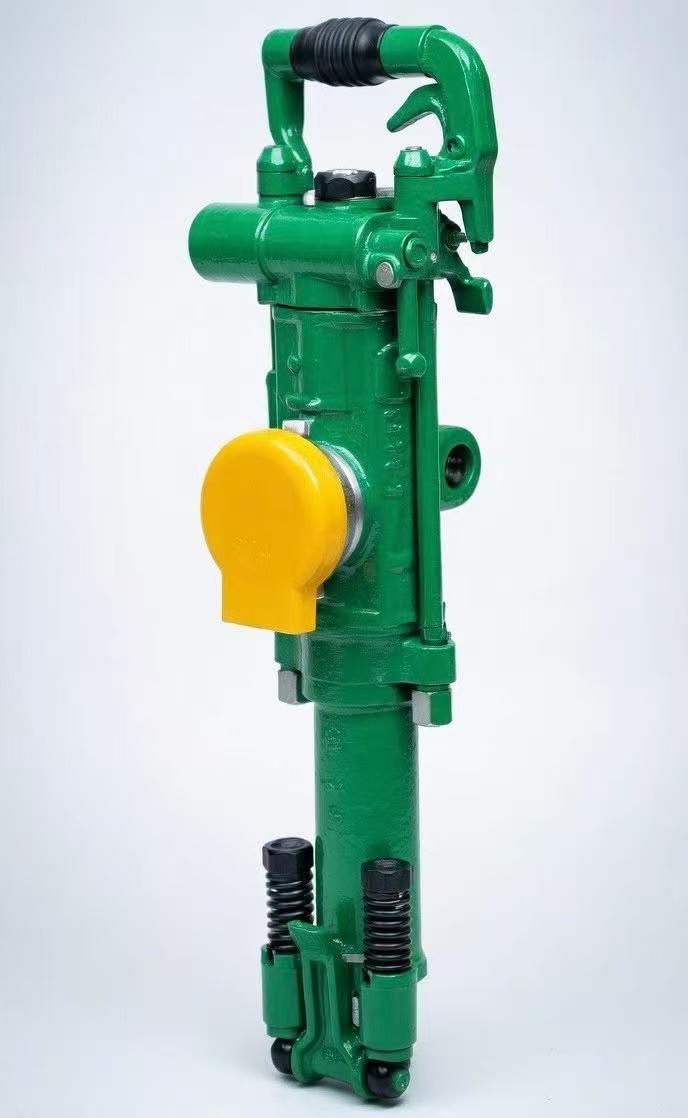

Parameter：YT24
Machine Weight：24 kg
Machine Length：678 mm
Cylinder Diameter：70 mm
Piston Stroke：70 mm
Working Air Pressure：0.4–0.63 MPa
Impact Frequency：>31 Hz
Air Consumption：≤66.7 L/s
Air Hose Inner Diameter：19 mm
Water Hose Inner Diameter：13 mm
Drill Bit Specification：34–42 mm
Shank Specification：22×108±1 mm
FT140B Air Leg
Air Leg Length:1687 mm
Feed Stroke:1250 mm
Cylinder Diameter:60 mm
Weight:15.6 kg
FT140BD Air Leg
Air Leg Length:1400 mm
Feed Stroke:965 mm
Cylinder Diameter:60 mm
Weight:13.9 kg
FY200B Lubricator
Oil Reservoir Capacity:200 ml
Brief Introduction
These rock drills are widely used in quarrying, mining, tunneling, and various rock drilling operations. They are designed for drilling blast holes and are essential heavy-duty equipment in mining, water conservancy, construction materials, energy, transportation, military, and geological engineering fields.
The YT24 rock drill is compatible with H22 steel drill rods, with a standard blast hole diameter of 30–42 mm and an effective drilling depth of up to 5 meters.
